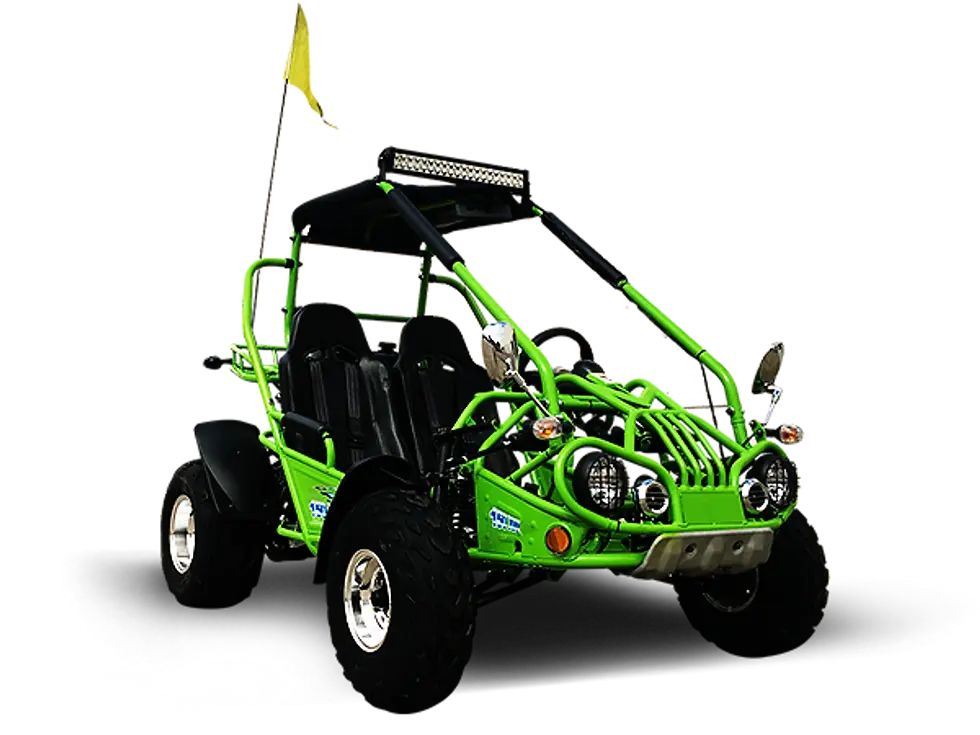

TRAIL MASTER 200 XRX
Take on the toughest terrain in style with the TrailMaster 200 XRX Go Kart with premium features including polished aluminum wheels, a digital speedometer/odometer, top mounted hunting lights and a bikini sunshade top! But it's not just for show. Underneath all that glitz is a rugged, tubular steel frame with top brush guard, side rails and an enclosed belly pan to take the abuse of harsh off-roading. Power comes from a 4-stroke, single cylinder, air cooled 168.9cc, 11.1hp GY6 technology engine mated to an automatic CVT clutch for a 43 mph top speed and excellent low-end torque. There's enough horsepower to haul light loads on the rear utility rack or to pull light-duty trailers with the included ball hitch. Driving is effortless and fun with rack-and-pinion steering, convenient reverse shifting, easily reachable, dash-mounted controls and dual sport bucket seats with 5 point harnesses. Drivers seat adjusts from 38 to 43 inches to the pedals while tilt steering tilts. Center and side mount mirrors, F&R hydraulic disc brakes, high/low beam headlights and turn signals add an extra measure of safety. The dual A-arm front and swing-arm rear suspension system provides excellent handling and maneuverability. The 200 XRX blazes new trails as the only 200cc GoKart on the market with this many nice features!
FEATURES
• GY6 engine with internal reverse set up
• Electric start with kill switch
• Adjustable rack and pinion steering
• sporting steering wheel
• Large tires: Front 20×7-8 Rear 22×10-10 with polished aluminum wheels
• Sport Seats with four-point safety seatbelt
• Polished stainless steel muffler
• Adjustable driver seat, pedal to seat back adjustable from 38″ to 43″
• Adj. heavy duty F&R shock absorber
• F&R hydraulic disc brake, parking brake
• 4-point rear swing arm
• 4-wheel fenders, trailer hitch, Bikini sunshade top
• Large rear utility rack, large gas tank
• Rear view mirror, aluminum side mirrors
• High-low beam head lights, top hunting lights, turn signals
• Digital speedometer/odometer
• LED LightbarSPECIFICATIONS
• EPA certificated
• Engine type: 4-stroke, single cylinder, air cooled
• Displacement: 168.9cc
• Max HP: 11.1hp/8000rpm
• Max torque: 8.1 lb ft/6000rpm
• Bore x stroke: 2.4x2.28 inches
• Max speed: 43 mph
• Climbing ability: 18 degrees
• Ignition: ECU
• Starting system: Electric
• Battery: 12V 10Ah
• Engine oil: SAE 15W-40
General Information
• Clutch: Automatic CTV with reverse
• Driveline / Driving wheel: Chain / Dual wheel drive
• Suspension, F / R: Double A-arm / swing-arm
• Brakes, F / R: Both hydraulic brakes, Disc
• Tires, F / R: 20x7-8 / 22x10-10
• Wheel: Aluminum
• Fuel capacity: 2.25 gal
• Weight, G.W. / N.W.: 573 / 485 lbs
• Max load: 500 lbs
Dimension Information
• Wheelbase: 59 inches
• OA L x W x H: 85x53.1x57.5 inches
• Height to seat: 13.8 inches
• Min ground clearance: 6.7 inches
