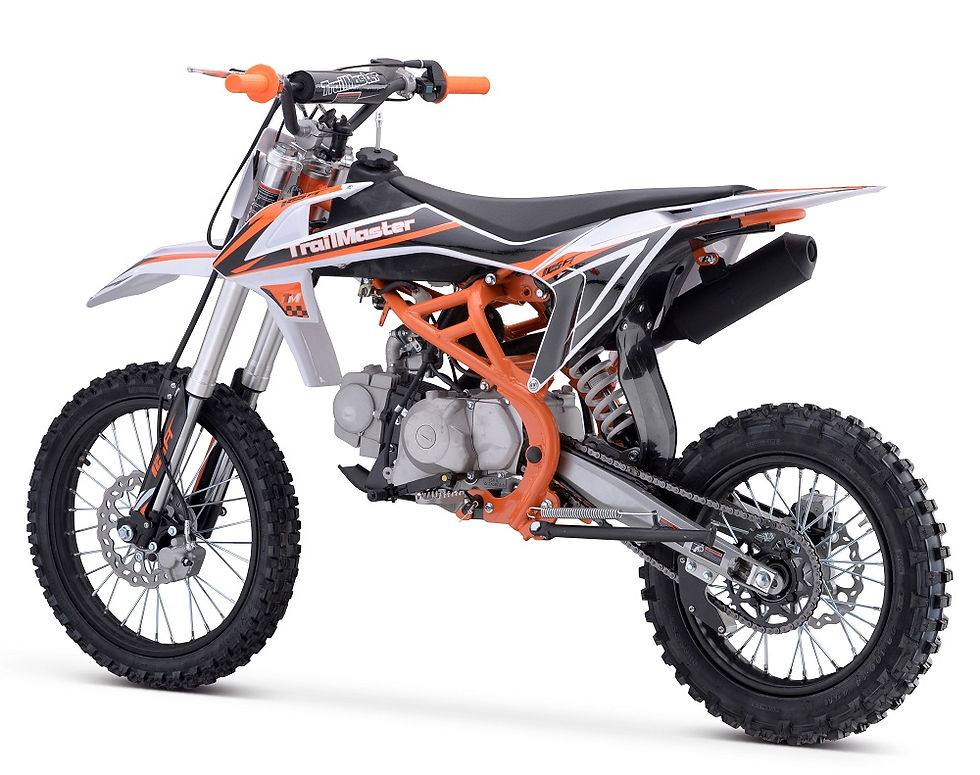

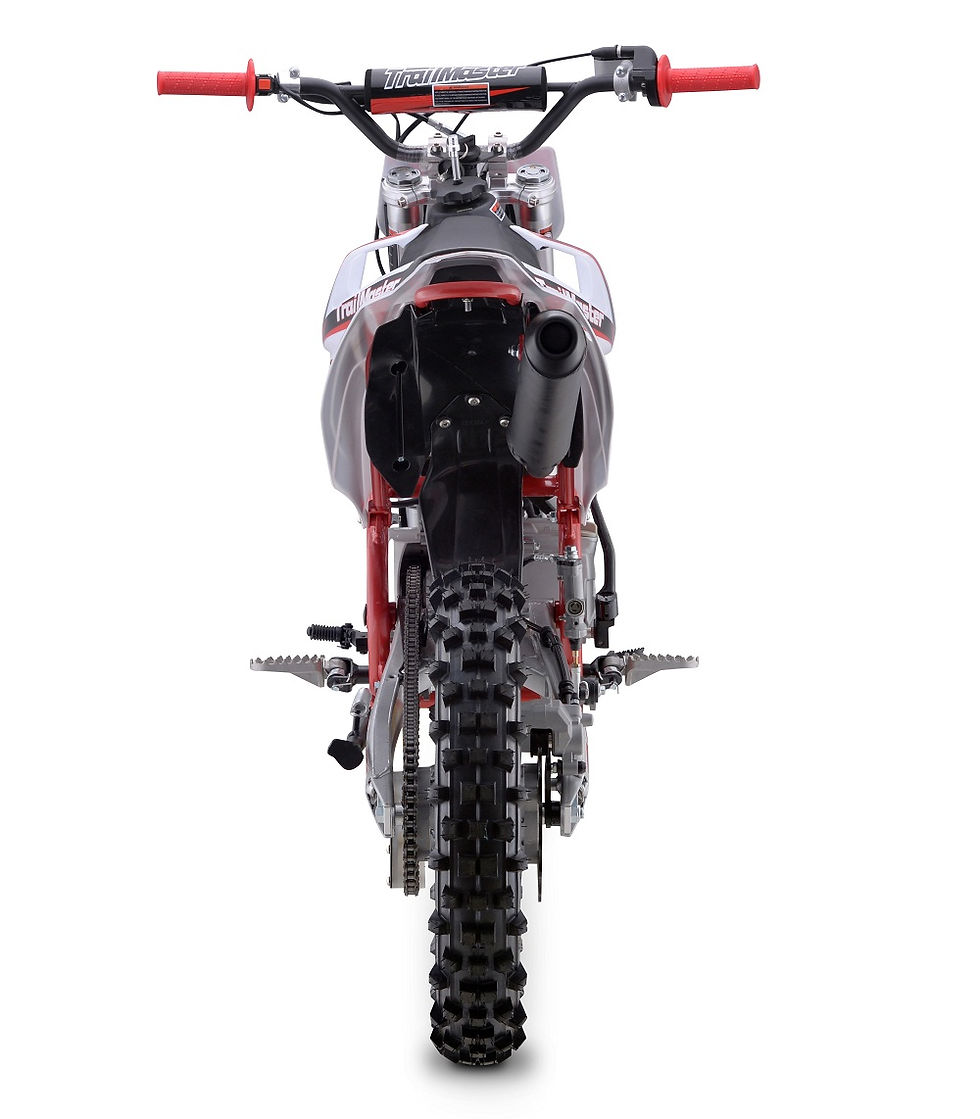

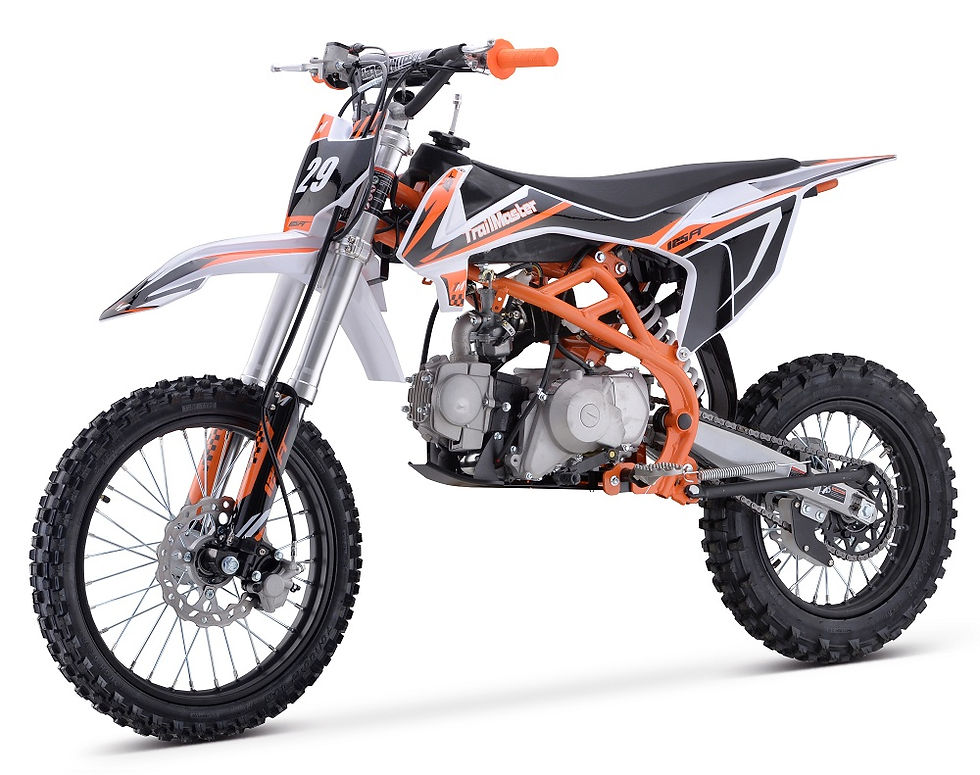

Trailmaster TM29 125cc Dirt Bike (Manual clutch)

• Powerful 125cc engine
• Electric and kick start, 4 gear manual clutch
• Large frame over 70 inches long (Bigger frame than TM24)
• 49.8 “ wheel base and 33.5” seat high
• Front tire 17”/Rear Tire 17”
• Hydraulic front and rear disc brakes
• Inverted front shock
• Large 1.2 gallon fuel tank

General Information

• Engine Type ZM125cc, Single Cylinder, 4‐Stroke, Air Cooled
• Displacement 124 ml
• Max Power 8.3hp
• Max Torque 6.64 lbf.ft
• Compression Ratio 9.6:1
• Shift Type N‐1‐2‐3‐4, Four‐Gear Manual Shift
• Start Type: Electric & Kick Start
• Ignition CDI
• Min. Fuel Consumpetion: ≤367g/kw.h
• Max Range: ≤10.5mile
• Engine Oil #： SJ5W一30
• Transmission Chain Drive;#428，14/41T

Size Data

• Overall Size (Length×Width×Height): (Inches)71.3X28.9X43.3 / (mm)1811X734X1099
• Wheel Base 49.8"
• Seat Height 33.5"
• Ground Clearance 13"
• Fuel Capacity 1.2 Gal/4.5 L
• Tires FT: 70/100‐17 ‐ RR: 90/100‐14 Knobby tires
• Wheels Steel 1.6 x 17" / 1.85 x 14" Rims, Cast Hubs

Frame/Suspension/Brake/Wheel System

• Frame Twin Girders Steel Tube
• Front Fork Inverted 45*48‐735mm Forks, Non‐Adjustable
• Rear Shock ￠10*￠11*310mm ,Spring Per‐load
• Swing‐Arm Steel Tube 14inch
• Handle Bar Steel Crossbar ,L=720mm; Dia=22mm
• Front Brake Hydraulic Single Piston Caliper, 210mm Disc
• Rear Brake Hydraulic Single Piston Caliper, 190mm Disc
• Exhaust Steel Pipe with catalyst converter(EPA Standard)
• Packing Size(inch) 62.6x14.8x29.9”
• N.W: 143.3 LBS / 65 KG
• G.W: 172 LBS / 78 KG

Product Dimensions
• Length×Width×Height: (Inches)63*15*30 / (mm)1600*381*762
• Weight : (Lbs)172 / (Kg)78
