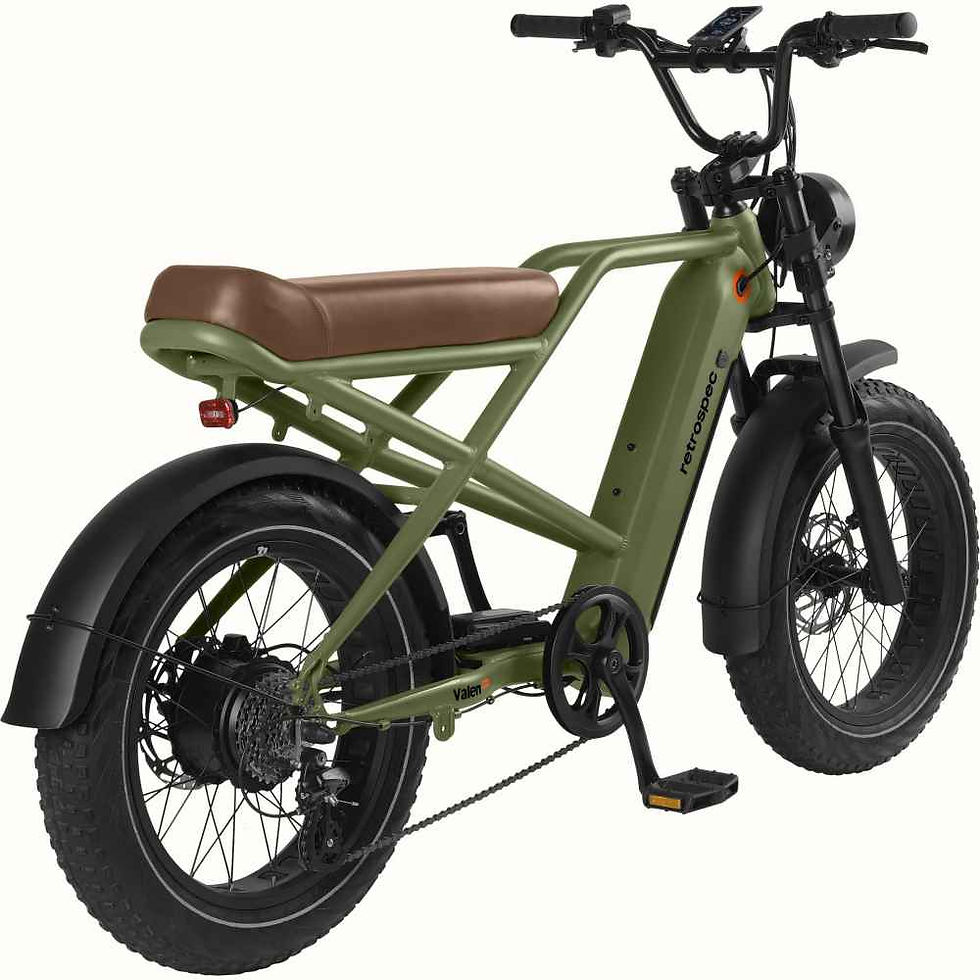

Valen Rev + 20" Fat Tire E Bike (Retrospec)
All terrain. Any adventure. Always down.
Off-road trails, tough-as-nails, wind in your sails. Whatever your thing is, Valen Rev+ is the only e-bike that can match your boldness and accept the same challenges you would. Fully equipped with a powerful, integrated 720Wh battery, 750W motor, and range of up to 68 miles per charge, this do-it-all e-bike can handle your longest, farthest, and most daring adventures. Pedal as much or as little as you’d like with a full throttle and 6 levels of Pedal Assist that can propel you up to 28mph; and with 4” puncture-protected fat tires and a 100mm suspension fork, you’ll effortlessly glide over any terrain as if the bumps and cracks aren’t even there. Feel free to blaze your own trails – roads are merely suggestions.
FEATURES
*28mph
*Top assisted speed
*Up to 68 Miles of Range
*Highest range Rev e-bike
*6 Pedal Assist Levels
*Propel while pedaling
*750W
*Planetary geared hub motor
*48V/720Wh
*LG Li-ion battery
*Tektro Hydraulic Disc Brakes
*Consistent & confident stopping power
*4” Fat Tires
*Superior puncture protection for any terrain
*100mm Travel Suspension Fork
*Absorbs impact
*350 lbs Recommended weight limit
*Easy Access to Controls
The handlebar-mounted button pod controls everything, from the throttle, to the lights, to walk mode, pedal assistance, & more. Keep track of it all with your eyes on the road using the easy-to-read, center-mounted color display.
*Choose Your Boost
You’re in total control of your ride. With a convenient push-to-go throttle and 6 levels of Pedal Assist, you can choose how much or how little assistance you want and ride up to 28mph.
*On- or Off-Bike Charging
This e-bike’s fully integrated battery is uniquely able to be charged both on and off the bike. It also uses LG 21700 cells to store more energy and offer up to 68 miles of range when fully charged.
*Off-Road Ready
Fat 20x4.0 tires are made with heavy duty construction, full-coverage puncture protection, and a reflective safety strip, offering stable, comfortable, and smooth rides on any terrain.
*Quiet, Consistent, Confident Braking
Tektro hydraulic disc brakes with e-bike specific rotors offer reliable stopping power in any weather, so you can brake confidently.
*Stay Seen, Stay Safe
Integrated front and rear lights illuminate your path and help keep you safe while riding in low light. The headlight’s 100 Lux illumination and the tail light’s brake indicator further improve the bike’s visibility.
*Easy-Change Rear Wheel Removal System
Retrospec’s proprietary easy-change system allows you to easily remove and replace the rear wheel whenever you need to take a look under the metaphorical hood.
*Tackle Inclines or Cruise Flats
With a robust, versatile Shimano 8-speed drivetrain
SPECIFICATIONS
FRAMESET
- MaterialValen 6061 hydroformed aluminum with, integrated downtube battery and replacable derailleur hanger.
- ForkTriple Clamp with 100mm of travel
WHEELSET
- Rims20" single-wall aluminum 36H, for disck brake with cut-outs
- HubsF: Aluminum bolt-on with 17mm axle nuts. 36 hole
- Spokes13G w/brass nipples
- Tires20 x 4.0, Fat MTB with puncture protection and reflective sidewall
E-POWER SYSTEM
- Motor750W rear hub
- 48V/750W Battery720Wh/48VLG 21700 cells; Charge on or off bike
- DisplayCenter mounted color LCD
- Charger48V/2A
- 48V/750W rangeUp to 68 miles
- Assist Levels1-6 PAS, Throttle and walk-mode
DRIVETRAIN
- Rear Derailleur8 speed Shimano Altus
- Shifter8 speed Shimano Rapidfire Plus
- Crankset3-Piece aluminum w/steel 38T chainrings with double alloy chainguard
- ChainKMC 8 speed
- BBSealed cartridge
- Freewheel/CogShimano 8 speed 11-34T
COMPONENTS
- Headset1-1/8” semi-integrated threadedless
- BrakesTektro Hydraulic with 180mm e-bike specific rotors and semi-metalic pads
- HandlebarsSteel BMX
- GripsLock-on comfort grips.
- StemBMX Die Cast Alloy 22.2mm clamp
- SaddleRetrospec Custom Moto
- PedalsAluminum plateform with non-slip tread.
EXTRAS
- KickstandAlloy chainstay mount
- Item Weight72 lbs (battery included)
- Recommended Weight Limit350lbs
